Bush Hog 160 Series
Double tap to zoom

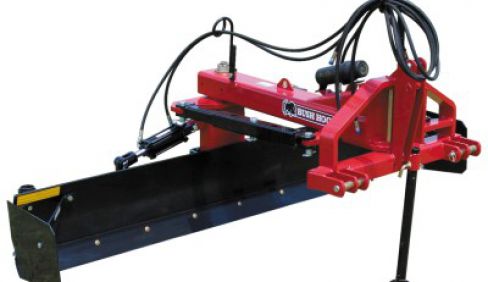

Rear Mounted Blades 160 Series
Overview:
The 160 Series Rear Blades is the ideal choice for heavy-duty grading chores around the farm such as road construction, terracing, dam building, cleaning out feed lots, and even snow removal.
These blades offer a choice of manual or hydraulic tilt, angle, and offset adjustments. Moldboard can be reversed for back filling. They are rated for use on a wide range of 2WD and 4WD tractors, depending on blade width.
With their heavy-duty construction, the 160 Series Blade is engineered and built to meet the most demanding conditions.
- Less
The 160 Series Rear Blades is the ideal choice for heavy-duty grading chores around the farm such as road construction, terracing, dam building, cleaning out feed lots, and even snow removal.
These blades offer a choice of manual or hydraulic tilt, angle, and offset adjustments. Moldboard can be reversed for back fi... + Read More
Share This Product:
Features
Performance Features
- 160 Series is available in 8 ft & 10 ft. operating widths.
- Tilt, Angle and Offset Adjustments
- Reversible Cutting Edge
- Standard Parking Stand
Construction Features
- Tubular Construction
- A Frame Construction
- Heavy-Duty King Pins
- Powder Coated Paint
- Heavy-Duty Mainframe
- High-Strength Reinforced Moldboard
Specifications
| MODEL | 160 SERIES |
| MOLDBOARD WIDTH | 8 & 10 ft. |
| MOLDBOARD HEIGHT AND THICKNESS | 18 in. x 1/2 in. |
| MOLDBOARD CUTTING EDGE | 1/2 in. x 6 in. |
| HITCH | 3-Pt. Cat. lI & III, Quick Hitch |
| APPROXIMATE WEIGHT | 1409 lbs. (8 ft.), 1529 lbs. (10 ft.) |
| MAX. TRACTOR HP (PTO) 2-WHEEL DRIVE | 8 ft. 190 HP, 10 ft. 160 HP |
| MAX. TRACTOR HP (PTO) FRONT WHEEL ASSIST | 8 ft. 160 HP, 10 ft. 135 HP |
| KING PIN DIAMETER | 4 in. |
| TILT ADJUSTMENT | 15º up or down (manual or hyd.) |
| OFFSET ADJUSTMENT | 37 in. left or right (manual or hyd.) |
| ANGLE ADJUSTMENT | 45º left or right (in forward and reverse position, manual or hyd.) |
| SKID SHOES | Optional |
| END PLATES | Optional |
| PARKING STAND | Standard |
| HYDRAULICS | Optional |
| ALL SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE. |
|---|
