Bush Hog 70 Series
Double tap to zoom

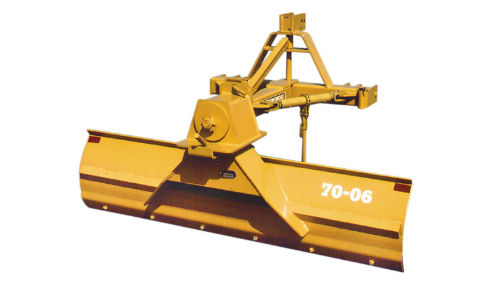

Rear Mounted Blades 70 Series
Overview:
The medium-duty 70 Series Blades are designed for landscaping, road maintenance, and snow removal. These blades feature a heavy duty mainframe and high-strength, reinforced moldboards to ensure years of trouble-free performance. The 70 Series Blades are rated for use on two-wheel drive tractors up to 70 PTO horsepower and four-wheel drive tractors up to 55 PTO horsepower. These blades feature tilt, angle and offset adjustments in both forward and reverse positions. - Less
The medium-duty 70 Series Blades are designed for landscaping, road maintenance, and snow removal. These blades feature a heavy duty mainframe and high-strength, reinforced moldboards to ensure years of trouble-free performance. The 70 Series Blades are rated for use on two-wheel drive tractors up to 70 PTO horsepower ... + Read More
Share This Product:
Features
Performance Features
- Fits Tractors Up To 70 PTO HP
- Available In 6 ft. to 8 ft Widths
- Tilt, Angle & Offset
- Reversible Cutting Edge
- High Strength Reinforced Moldboard
- Standard Parking Stand
Construction Features
- Heavy Duty Main Frame
- High Strength Reinforced Moldboard
- Tubular Construction
- A Frame Construction
- Double Strap Hitch
- Reversible Cutting Edge
- Heavy Duty King Pins
- Powder Coat Paint
Specifications
| MODEL | 70 SERIES |
| MOLDBOARD WIDTH | 6, 7 & 8 ft. |
| MOLDBOARD HEIGHT AND THICKNESS | 18 in. x 5/16 in. |
| MOLDBOARD CUTTING EDGE | 1/2 in. x 6 in. Reversible |
| HITCH | 3-Pt. Cat. l & II, Quick Hitch |
| APPROXIMATE WEIGHT | 510 lbs. (6 ft.), 538 lbs. (7 ft.), 572 lbs. (8 ft.) |
| MAX. TRACTOR HP (PTO) 2-WHEEL DRIVE | 80 HP |
| MAX. TRACTOR HP (PTO) FRONT WHEEL ASSIST | 55 HP |
| KING PIN DIAMETER | 1 1/4 in. Grade 8 |
| TILT ADJUSTMENT | 30º up or down (manual) |
| OFFSET ADJUSTMENT | 18 in. left or right (manual or hyd.) |
| ANGLE ADJUSTMENT | 5 forward positions up to 45º, 5 reverse positions up to 30º |
| SKID SHOES | N/A |
| END PLATES | N/A |
| PARKING STAND | Standard |
| HYDRAULICS | N/A |
| ALL SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE. |
|---|
