Bush Hog 3414 (Pull) / NOT AVAILABLE
New Products /
Bush Hog /
Multi-Spindle Rotary Cutters /
3414 Multi-Spindle Rotary Cutters /
3414 (Pull)
Double tap to zoom

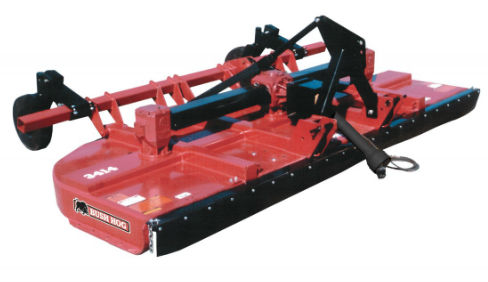

3414 Multi-Spindle Rotary Cutters 3414 (Pull)
Share This Product:
Features
Performance Features
- Available With Row Crop Shredding Kit
- Rubber Element Cross Shafts
- Heavy Duty Rubber Cushioned Axles
- Three Round Or Straight Blade Holders
- Slip Clutch Standard
Construction Features
- 10 Gauge Deck Construction
- 7 Gauge Strongbacks
- 1/4 Inch Sidebands
- Rubber Cushioned Axle Arms
- Round Blade Pan Or Straight Bar
- 5 Year Gearbox Limited Warranty
- Powder Coat Paint
Specifications
| Model 3414 | Pull |
| Cutting Width | 14 feet |
| Cutting Capacity | 2 1/2-inch Diameter |
| Cutting Height | 2 to 13 inches |
| Dimensions (width x length) | 14 ft 7 inches x 13 ft 5 inches |
| Type Hitch | Self-Leveling |
| Deck Thickness | 10 gauge |
| Side Bands | 1/4 x 10 inches |
| Minimum Tractor HP | 75 PTO |
| Driveline | ASAE Category 5 |
| Cross Shaft | ASAE Cat5 Rubber Element Cross Shaft with Cat4 Shearpin |
| Gearbox HP | (3) 210 Center and 205 Outboard |
| Tractor PTO Speed | 540/1000 RPM |
| Driveline Protection | 4 Plate PTO Slip Clutch |
| Height Adjustment | Choice of Manual Height Bundle or Hydraulic |
| Blade Holder (s) | Straight or Round |
| Blades | 1/2 inch X 4 inches – Uplift |
| Blade Tip Speed | 15,242 FPM |
| Blade Overlap | 3 Inches |
| Tires | Laminated |
| Axles | Rubber Cushioned; Choice of Single or Dual Axle |
| Deflectors | Front Belting and Rear Bands or Chains |
| Safety Tow Chain | Standard |
| Approximate Weight | 3419 lbs. |
| Options | Shredder Attachment |
