Construction Attachments Inc. Compact Standard Bottom Tractor Loader 4-IN-1 Multi-Purpose Bucket
New Products /
Construction Attachments Inc. /
4-In-1 Multi-Purpose Buckets /
Multi-Purpose Buckets /
Compact Standard Bottom Tractor Loader 4-IN-1 Multi-Purpose Bucket
Double tap to zoom
Multi-Purpose Buckets Compact Standard Bottom Tractor Loader 4-IN-1 Multi-Purpose Bucket
Overview:
Compact Standard Bottom 4-IN-1 Multi-Purpose Buckets are designed for compact tractor loaders up to 50 horsepower and feature a bolt-on reversible dozer edge. This attachment is available in 54", 60", 66" and 72" models with optional bolt-on teeth, a reversible cutting edge or compact tooth bar.
Share This Product:
Features
4-IN-1 MULTI-PURPOSE COMPACT STANDARD BOTTOM TRACTOR LOADER BUCKET
Product Features:
- For compact tractor loaders up to 50 horsepower
- Radius moldboard for improved material loading and unloading
- Pre-drilled 4” x 1/2 “ front cutting edge to accommodate bolt-on reversible cutting edge or bolt-on teeth
- Bolt-on reversible dozer edge
- Models include 54”, 60”, 66” and 72”
Front edge options:
- Bolt-on Teeth
- Bolt-on Reversible Cutting Edge
- Bolt-on Compact Tooth Bar

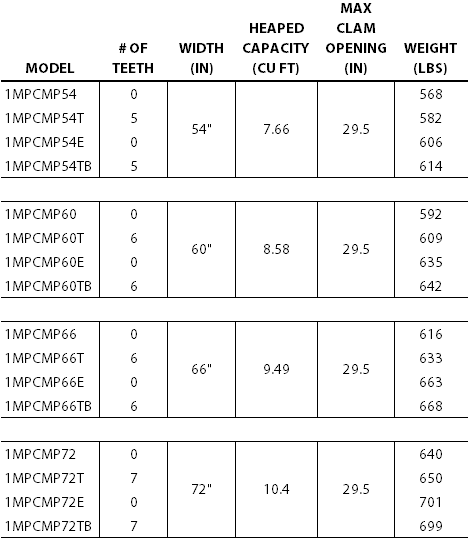

Specifications
| Model | 1MPCMP |
|---|---|
| Item | 1MPCMP54 1MPCMP54T 1MPCMP54E 1MPCMP54TB 1MPCMP60 1MPCMP60T 1MPCMP60E 1MPCMP60TB 1MPCMP66 1MPCMP66T 1MPCMP66E 1MPCMP66TB 1MPCMP72 1MPCMP72T 1MPCMP72E 1MPCMP72TB |
| Item Cont. | No |
| Product Category | 4-IN-1 Multi-Purpose Buckets |
| Duty Rating | Compact |
| Product Type | Standard Bottom |
| Width (Inches) | 54, 60, 66, 72 |
| Attachment Options | Bolt-on Edge (E), Bolt-on Teeth (T), Bolt-on Compact Tooth Bar (TBCMP), None |
| # of Teeth | 0-7 |
| Heaped Capacity - Cu Ft | 40 (74"), 47 (84"), 54 (93") |
| Max Clam Opening (IN) | 29.5 |
| Weight (LBS) | 568-701 |
| OEM Colors Available | Yes |
| Designed For Use | back filling, clam loading, bull dozing, clamping, bottom dumping, scraping, loading, digging |
| Suitable For | Compact Tractor Loaders |
